Excavation is carried out based on the excavation regulations stated in the standard specification of Korea Expressway Corporation.

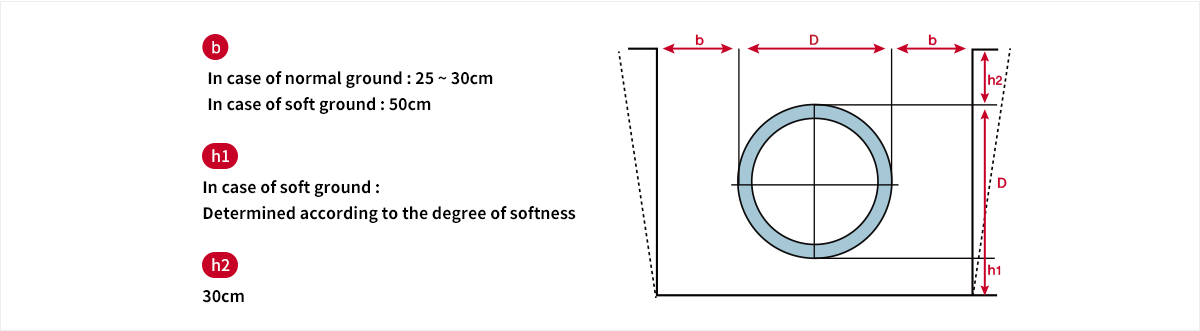

The width of the excavation is as follows.
| Nominal pipe size | 300 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1,000 | 1,200 | 1,350 | 1,500 | 1,800 | 2,000 | 2,200 | 2,400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| The width of the excavation(b) | 700 | 900 | 1,000 | 1,100 | 1,200 | 1,400 | 1,600 | 1,700 | 1,800 | 2,100 | 2,300 | 2,500 |

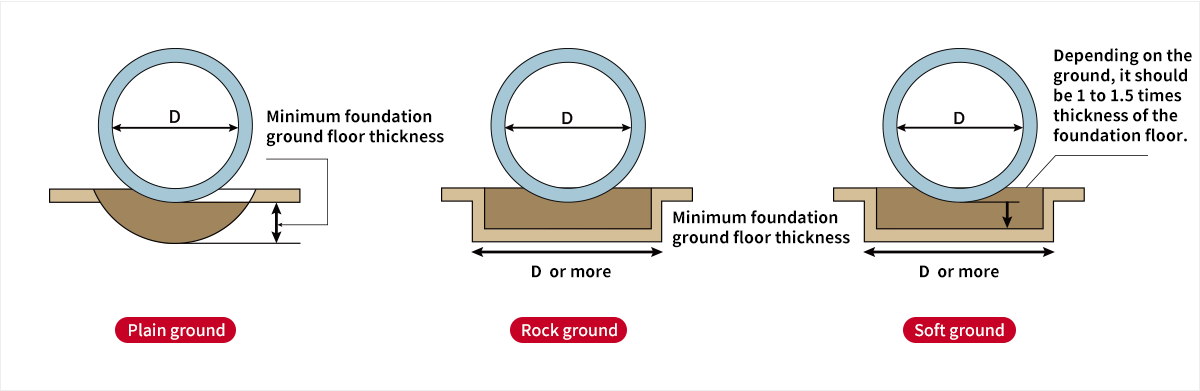

In order to evenly distribute the load acting on the corrugated steel pipe, the following conditions of foundation ground are observed.
| Type of foundation ground | Minimum thickness of foundation | Width of foundation | ||
|---|---|---|---|---|
| 900mm or less | 900 ~ 2,000mm | 2,000mm or more | ||
| Normal ground | 200mm | 300mm | 0.2D | D |
| Rock ground | 200mm However, if the fill height exceeds 5 meters, increase by 40mm per 1 meter. |
D | ||
| Soft ground | 500mm | 0.4D or 500mm, whichever is greater | 0.3D Up to 1 meter |
2D ~ 3D |

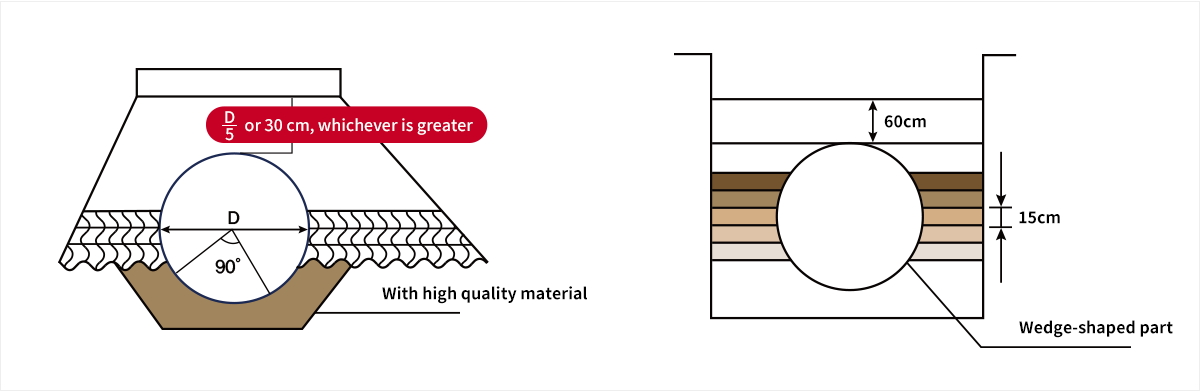

For the minimum height of fill after the construction, 300 mm or more or D/5 from the bottom of the pavement, whichever is greater, is applied.
