Corrugated Steel Pipe

Polymer coated corrugated steel pipe

Anti-corrosive Polumer coated corrugated steel pipe

As a type of corrugated steel pipe manufactured by heat-sealing an anti-corrosive PE (polyethylene) film onto a hot-dip galvanized steel plate (KS D 3506), which is the raw material of the corrugated steel pipe, it has higher corrosion resistance, chemical resistance and durability than corrugated steel pipes.

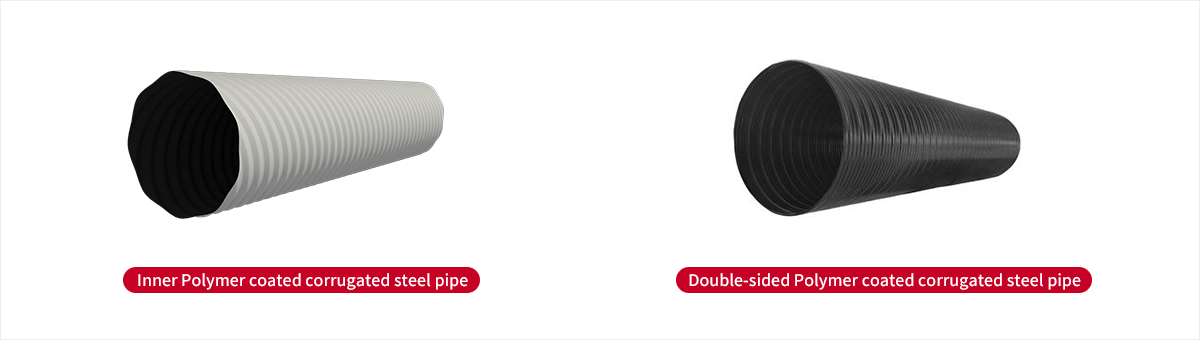

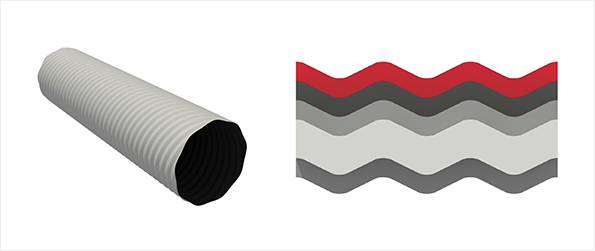

  • Cross section of inner Polymer coated corrugated steel pipe
  • Cross section of double-sided Polymer coated corrugated steel pipe
Normative references for anti-corrosive Polymer coated corrugated steel pipe
  • ASTM A742/A742M

    Standard Specification for Steel Sheet, Metallic Coated and Polymer Precoated for Corrugated Steel Pipe

  • KS D 3590(KScertification)

    Corrugated steel pipes and sections

  • SPS-KMIC-001-1966 (SPS certified)

    Anticorrosive coated screw steel pipes and connectors

Manufacturing process

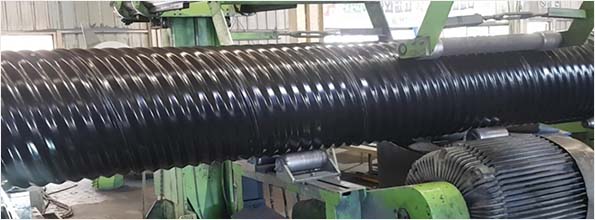

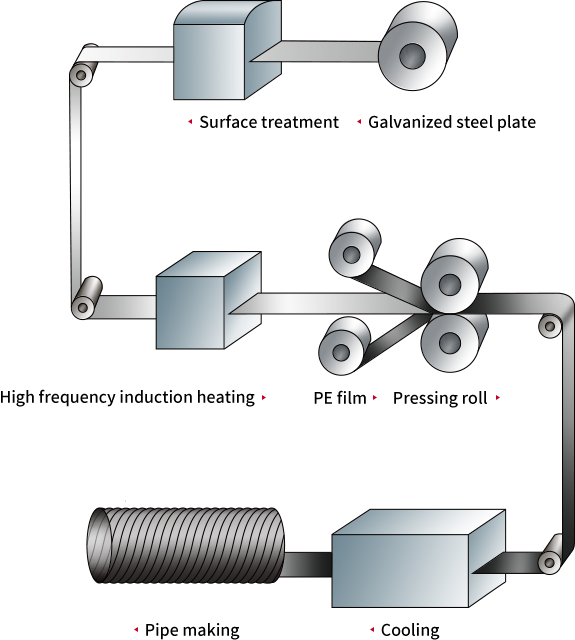

Anti-corrosive Polymer coated corrugated steel pipe is produced in the same manner as that of corrugated steel pipe by using a coated coil in which an anti-corrosive PE (polyethylene) film is heat-sealed.

  • Hot-dip galvanized steel plate coating

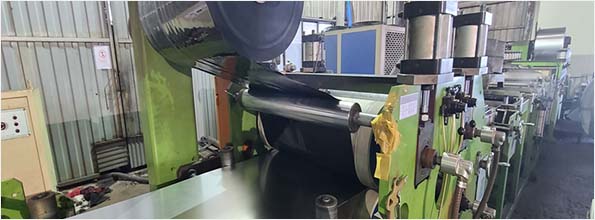

  • Production of Polymer coated corrugated steel pipe

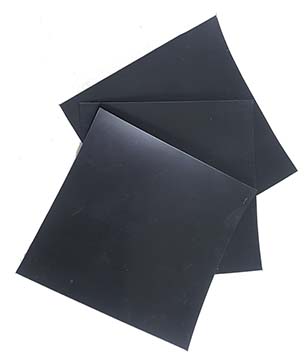

Specification of anti-corrosive PE (polyethylene) film
Thickness Material properties
0.25mm or more High-strength PE
Manufacturing Specification
Specification Type of coating Nominal diameter Thickness of steel plate
0RS Inner coating 150~600 1.6
Double-sided coating
0RS Perforated pipe Inner coating 150~600 1.6
Double-sided coating
1RS Inner coating 300~1800 1.6, 2.0, 2.7, 3.2
Double-sided coating
3RS Inner coating 900~3000 1.6, 2.0, 2.7, 3.2
Double-sided coating

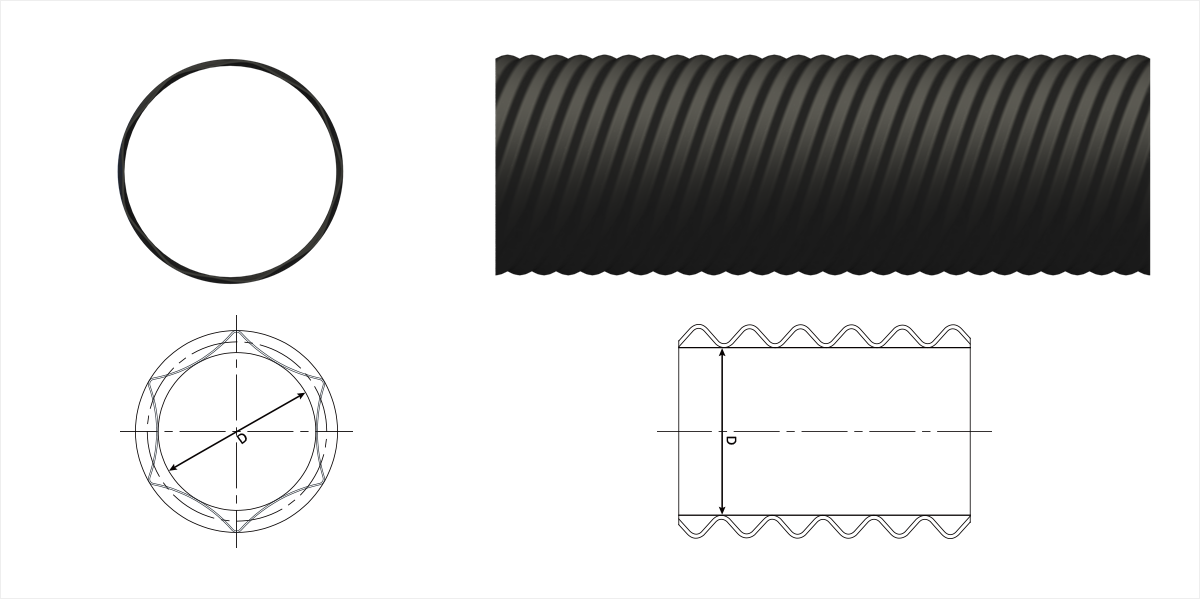

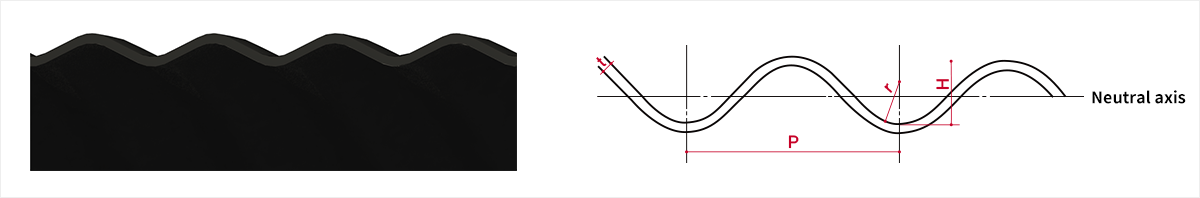

Cross-sectional shape
Type of product
Material Specification

ASTM A742/A 742M-98
(Steel Sheet, Metallic Coated and Polymer Precoated for Corrugated Steel Pipe)

Cross-sectional shape
Features
  • Long durability

    High-strength polyethylene resin is coated on galvanized plates with excellent corrosion resistance, so it has high chemical resistance and can be used in any conditions and environment.

  • High external pressure strength

    Polymer coated corrugated steel pipe is a ductile pipe to which load-bearing force is generated by molding corrugations in the steel plate. The load and reaction forces are evenly distributed around the pipe, so the load-bearing strength is enormous.

  • Simple consturction with lower cost
    • Light in weight (about 1/10 of the hume pipes) and easy to transport and install.
    • The small number of connecting parts required and simple connecting methods reducing the construction period.
    • Can be immediately backfilled, reducing the inconvenience of traffic and passage due to construction.
  • HIgh watertightness

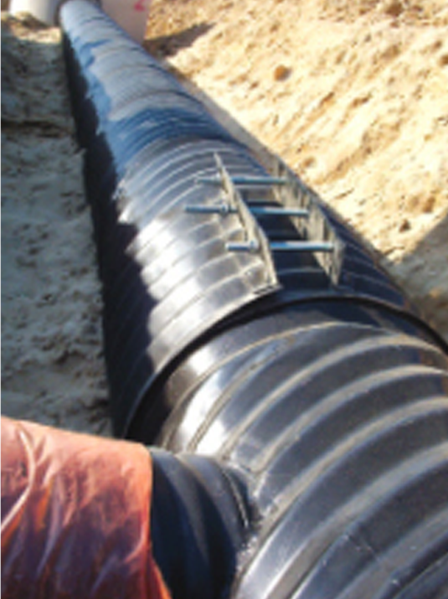

    Simple connection method and high watertightness

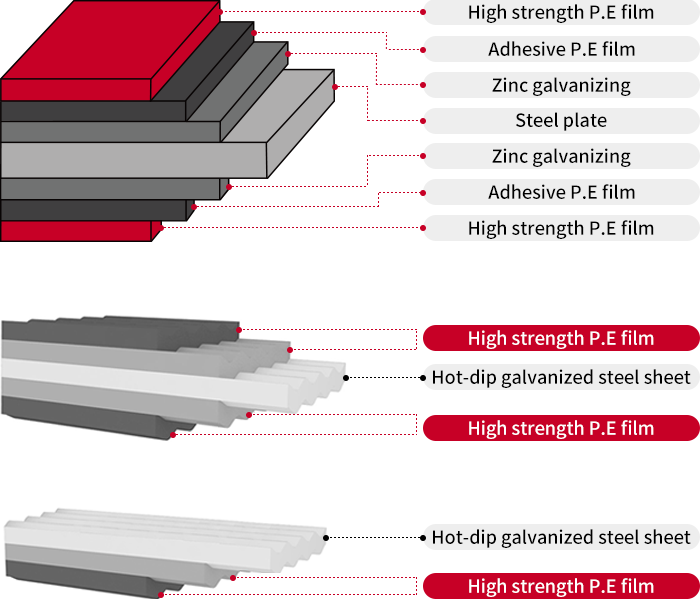

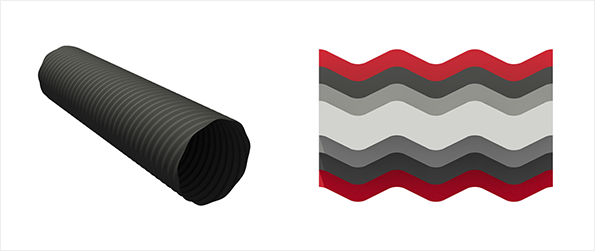

Cross-sectional structure
PE coating type
PㆍE coating number PㆍE coating type PㆍE coating thickness
MPC 03 Inner PㆍE coating 0.25mm PㆍE coating on the inside
MPC 33 Double-sided PㆍE coating 0.25mm PㆍE coating on both sides
MPC 55 Double-sided PㆍE coating 0.5mm PㆍE coating on both sides
MPC 35 Unbalanced PㆍE coating 0.25mm outside, 0.5mm inside
MPC 53 Unbalanced PㆍE coating 0.5mm outside, 0.25mm inside
Manufacturing Specification
Shape number Pipe diameter (mm) PㆍE coating type Length (m)
MPC 0RS (Small) 150 ~ 600 1.4 ~ 1.6 1~12
MPC 1RS (Medium) 300 ~ 2,000 1.6 ~ 3.2
MPC 3RS (Large) 900 ~ 3,600 2.0 ~ 3.2

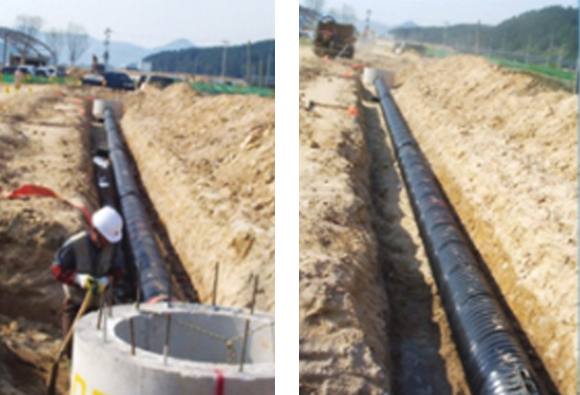

Application
  • For water drainage

    drainage pipes for land development of houses, complexes, industrial complexes, etc., roads, railroads, vertical/horizontal drainage pipes, factory drainage pipes, forest road drainage pipes, irrigation water pipes, sewage treatment plant collection pipes, coastal landfill sites, reclaimed land drainage pipes, amusement facilities and sports facilities drain pipe, etc.

  • For structure

    Substitute pipe for concrete box structure, underground pit, simple structure, etc.

  • Others

    Piles for collecting water, for fill load reduction, concrete formwork, etc.
